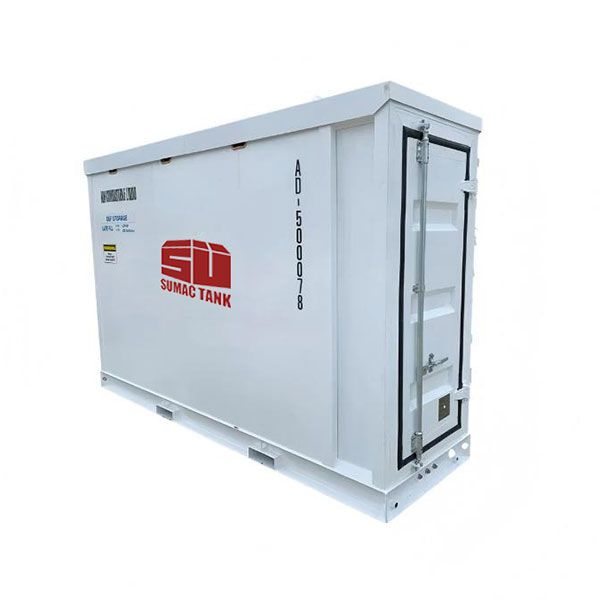

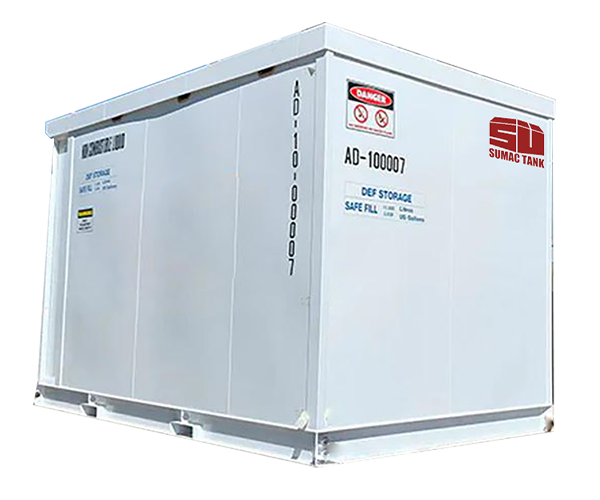

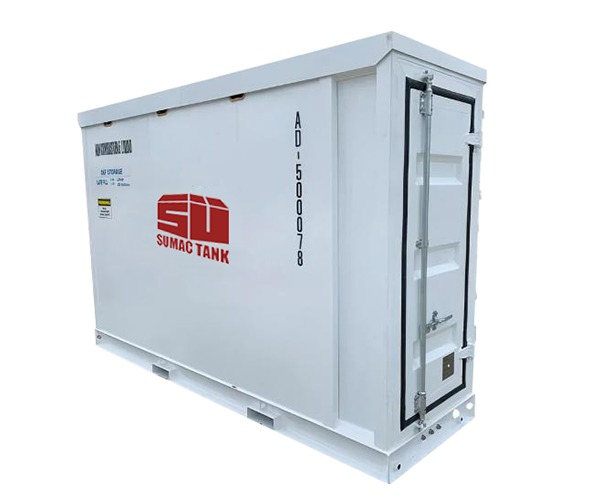

AD-10

Modern diesel vehicles are designed to use AdBlue diesel exhaust fluid (DEF) to reduce nitrogen oxide emissions and meet environmental regulations.SUMAC are AdBlue tank and distribution specialists. Our AdBlue storage tanks and dispensing systems ensure safe DEF storage and minimise the risk of contamination during storage and transfer.

Integrated AdBlue/diesel tanks provide a complete cost-effective refuelling solution for modern diesel fleets from the one unit, They feature double-walled steel construction with dual compartments including a stainless steel AdBlue compartment to retain product quality.

AD Fuel Tank Specifications
Model AD-10 AD-16 AD-20
Capacity
Normal/Safe fill(95%)
11000/10000 L-2906/2642G 16000/15000 L-4227/3963G 22000/20000L-5812/5283G
Dimension(L×W×H,mm) 2950×2300×2550mm 3950×2300×2550mm 4950×2300×2550mm
Dimension(L×W×H,inch) 116×91×100inch 156×91×100inch 195×91×100inch
Empty Weight(KG) 2900kg 3800kg 4500kg
Empty Weight(IBS) 6393lbs 8378lbs 9921lbs

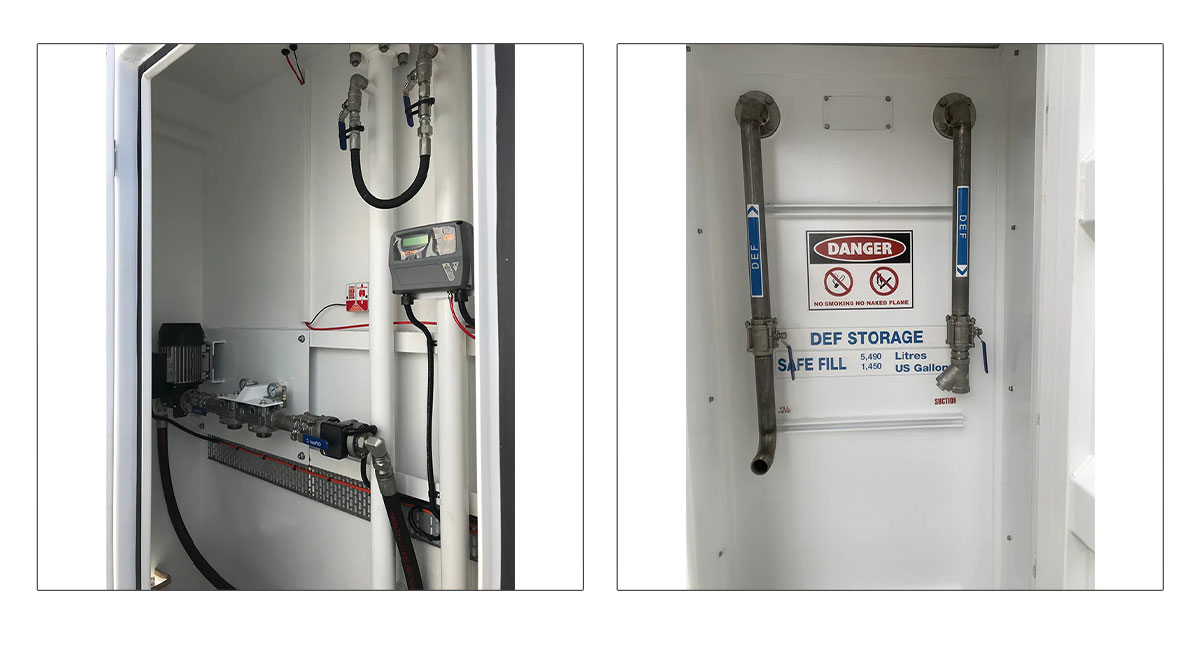

  • MANWAY ACCESS
    Allows easy inspection of inner tank and simplifies routine maintenance.
  • LIFTING EYES
    These allow the tanks to be easily moved by crane when empty.
  • FOUR-WAY FORKLIFT POCKETS
    Quick and easy maneuvering and mobility.
  • DOUBLE-WALLED
    Built-in,weatherproof secondary containment eliminates the need for pans or basins.
