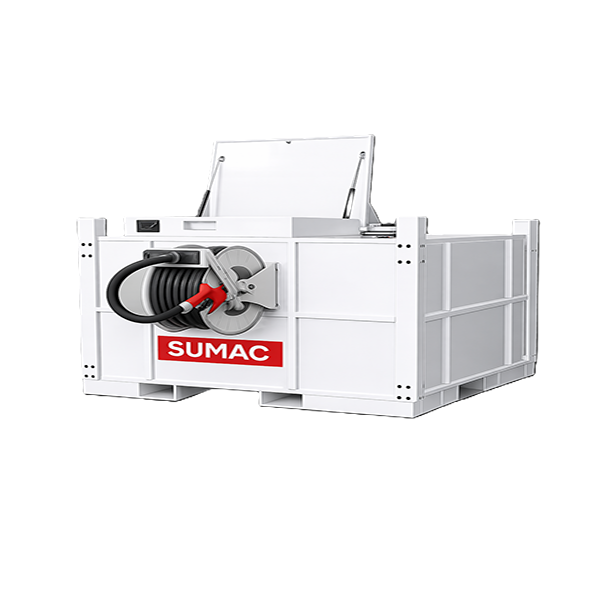

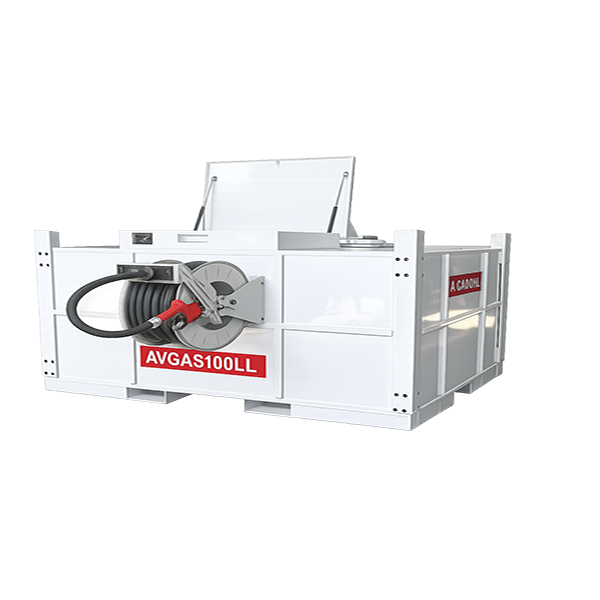

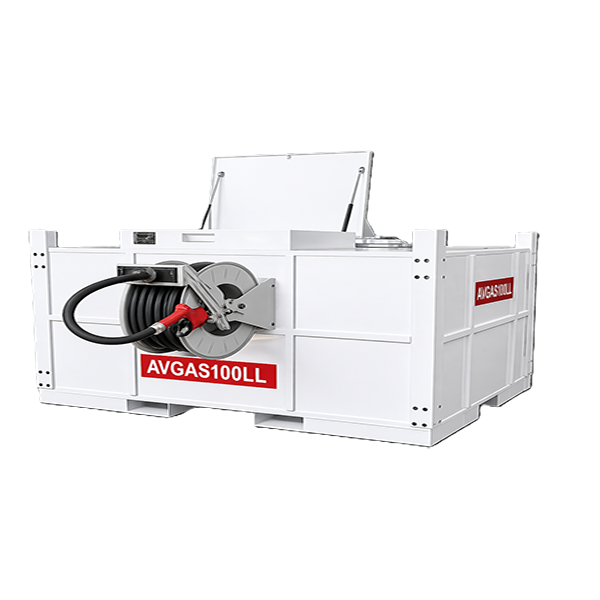

SUMACube Aviation is an aviation fuel tank designed for the storage
and refueling of Jet A and Avgas in general aviation and small airport
operations.

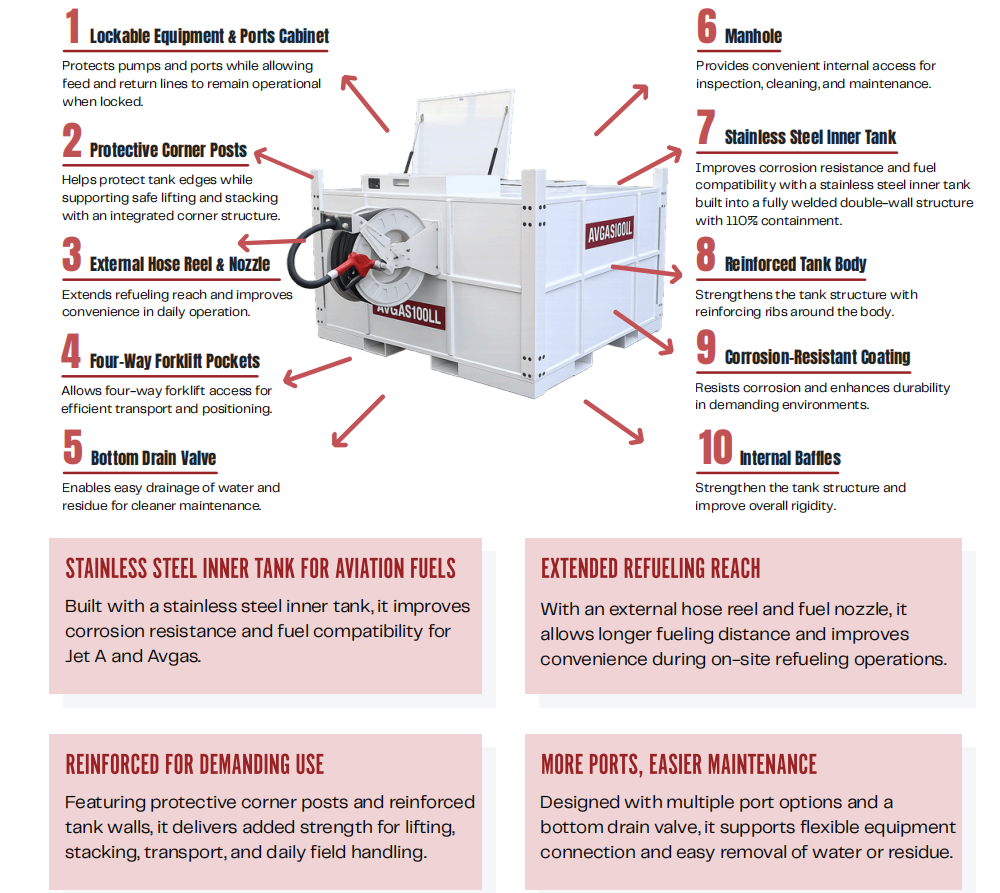

With a stainless steel inner tank, it provides a durable and
reliable solution for aviation fuel handling.
|
|
|
|
| Model | PL-2500 | PL-3500 | PL-5500 |
|
Capacity Safe fill（95%）/ Brim Fill |
627 / 660 US gal | 878 / 925 US gal | 1380 / 1453 US gal |
| 2375 / 2500 L | 3325 / 3500 L | 5225 / 5500 L | |
|
Dimension L×W×H |
56.5" × 87.2" × 50.8" | 76.0" × 85.8" × 50.8" | 114.8" × 88.6" × 50.8" |
| 1,436 × 2,214 × 1,290 mm | 1,930 × 2,180 × 1,290 mm | 2,916 × 2,250 × 1,290 mm | |
|
Weight Empty / Safe Fill |
2,595 / 6,784 / 6,365 lb | 3,153 / 9,017 / 8,430 lb | 4,034 / 13,250 / 12,328 lb |
| 1,177 / 3,077 / 2,887 kg | 1,430 / 4,090 / 3,824 kg | 1,830 / 6,010 / 5,592 kg |
