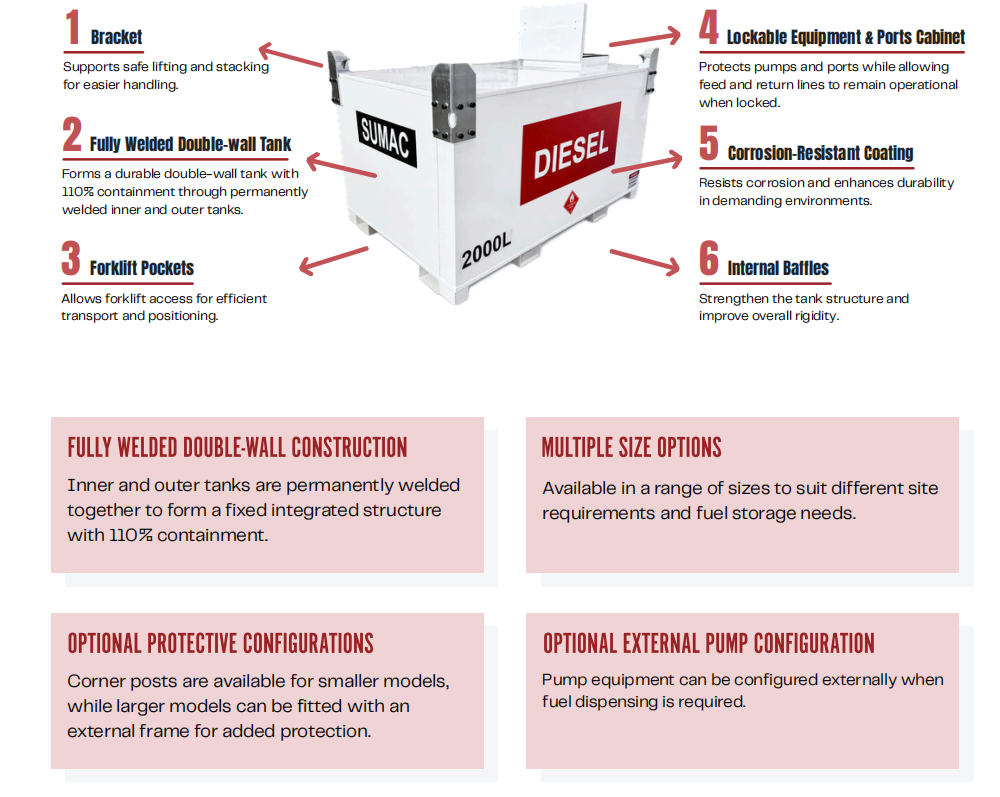

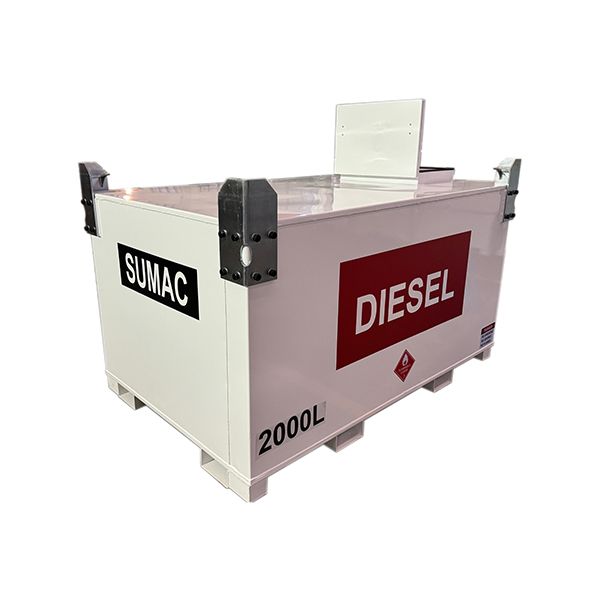

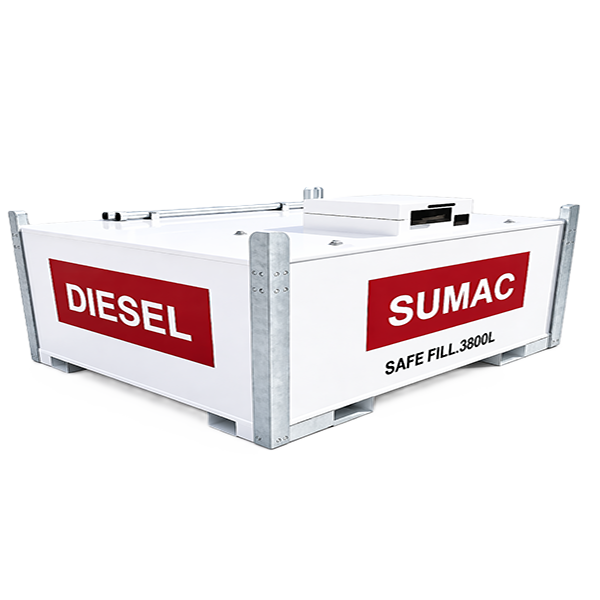

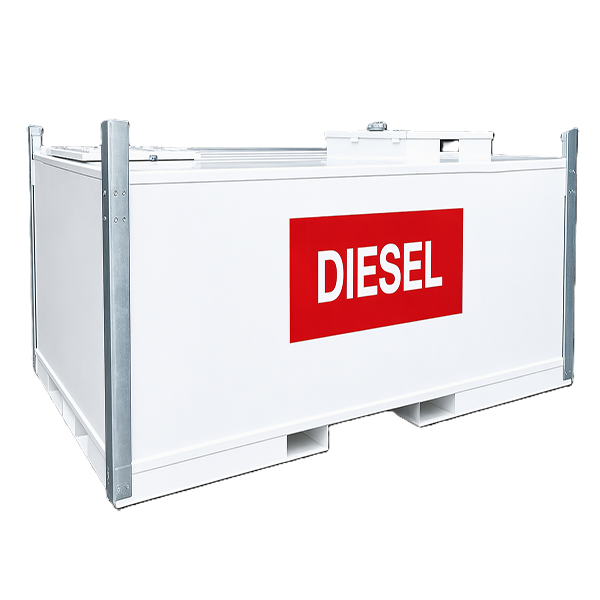

SUMACube Core is a fully welded double-wall fuel tank designed for
on-site fuel storage and routine refueling. With a fixed inner and outer
tank construction and an integrated port cabinet, it provides a durable
and efficient storage solution in a streamlined base configuration.
Available in multiple sizes and customizable to suit specific site and fuel
handling requirements.
|
|
|
|
|

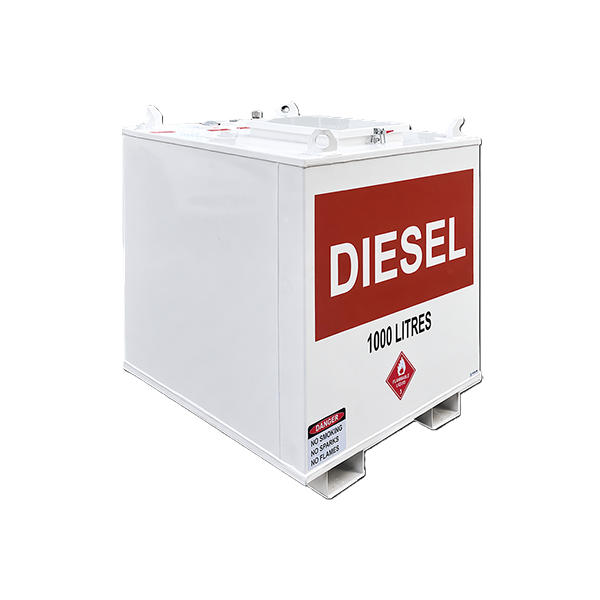

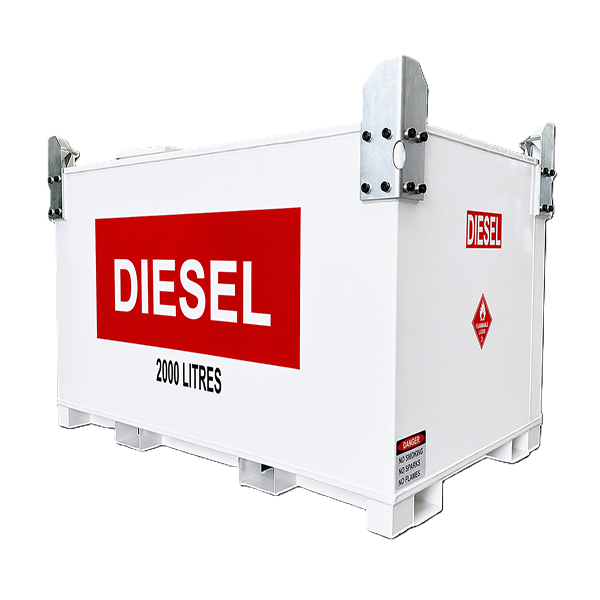

| Models | ARST-1000 | ARST-2000 | ARST-3000 | ARST-4000 |
|
Capacity Safe fill（95%）/ Brim Fill |
251 / 264 US gal | 502 / 528 US gal | 753 / 793 US gal | 1004 / 1057 US gal |
| 950 / 1000 L | 1900 / 2000 L | 2850 / 3000 L | 3800 / 4000 L | |
|
Dimension L×W×H |
44.8" × 44.8" × 50.6" | 85.8" × 55.9" × 51.2" | 85.8" × 80.1" × 52.0" | 89.8" × 78.7" × 50.6" |
| 1,138 × 1,138 × 1,285 mm | 2,180 × 1,420 × 1,300 mm | 2,180 × 2,035 × 1,320 mm | 2,280 × 2,000 × 1,285 mm | |
|
Weight Empty / Safe Fill |
1,316 / 3,096 lb | 2,116 / 5,677 lb | 2,866 / 8,208 lb | 3,086 / 10,207 lb |
| 597 / 1,405 kg | 960 / 2,575 kg | 1,300 / 3,723 kg | 1,400 / 4,630 kg |
|
|
|
|
|

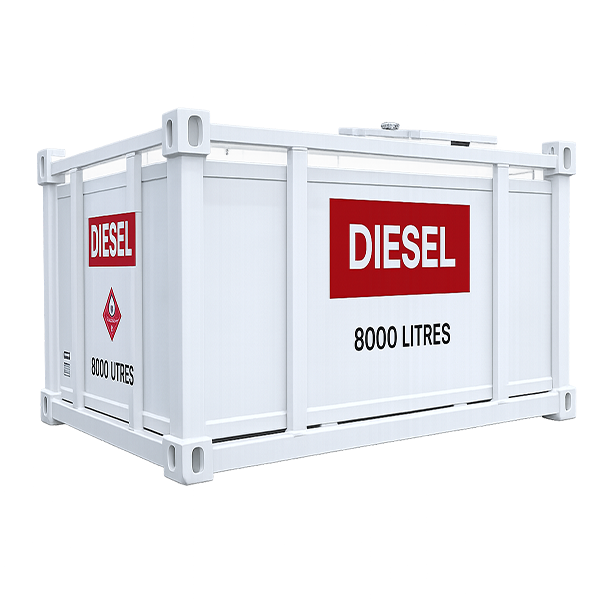

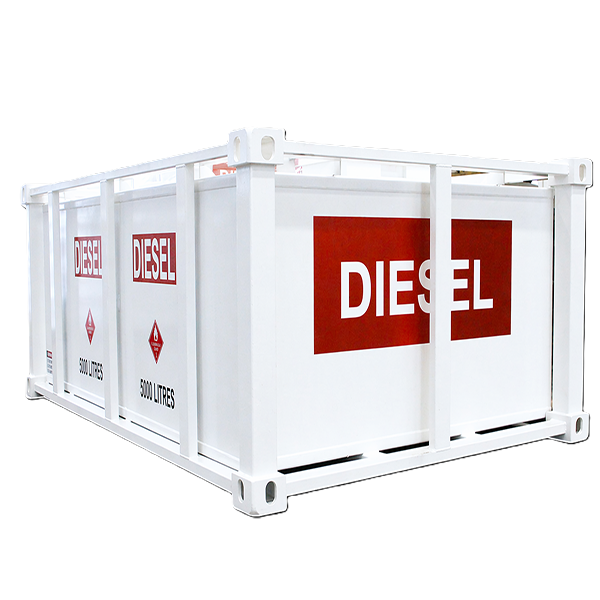

| Models | ARST-5000 | ARST-8000 | ||
|
Capacity Safe fill（95%）/ Brim Fill |
1255 / 1321 US gal | 4750 / 5000 L | 2008 / 2113 US gal | 7600 / 8000 L |
|
Dimension L×W×H |
99.1" × 86.5" × 50.6" | 2,517 × 2,198 × 1,285 mm | 155.3" × 86.6" × 50.6" | 3,944 × 2,200 × 1,285 mm |
|
Weight Empty / Safe Fill |
3,402 / 12,303 lb | 1,543 / 5,581 kg | 5,955 / 20,197 lb | 2,701 / 9,161 kg |
