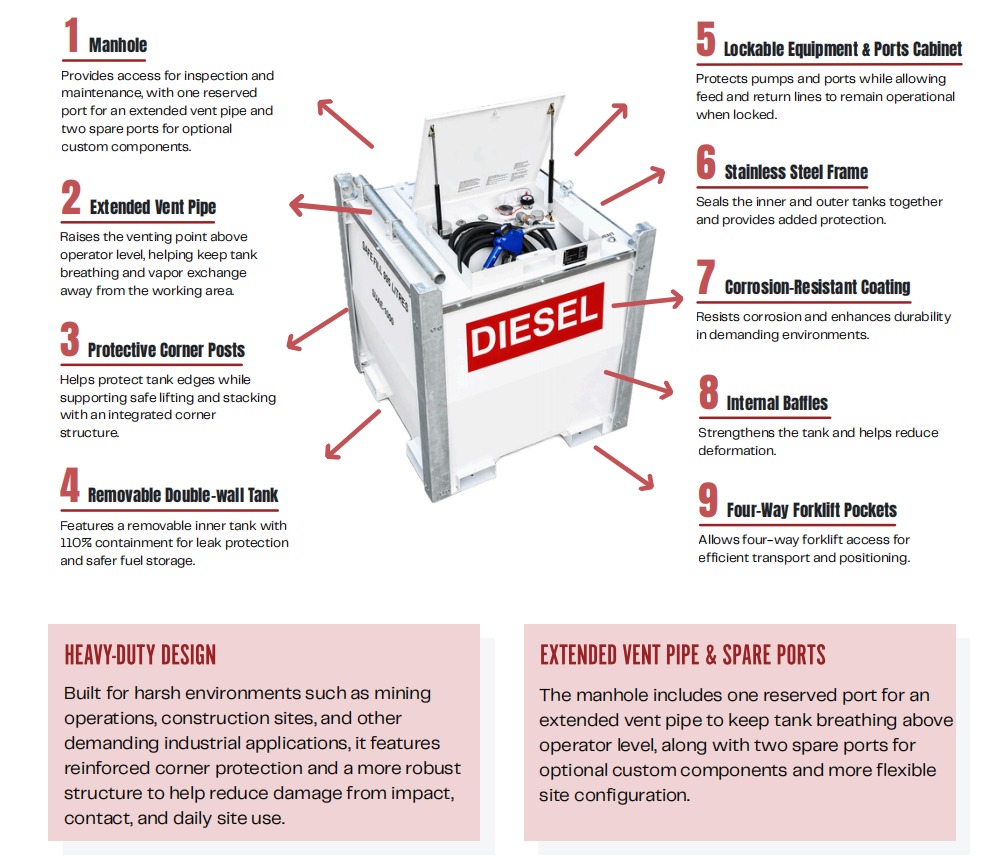

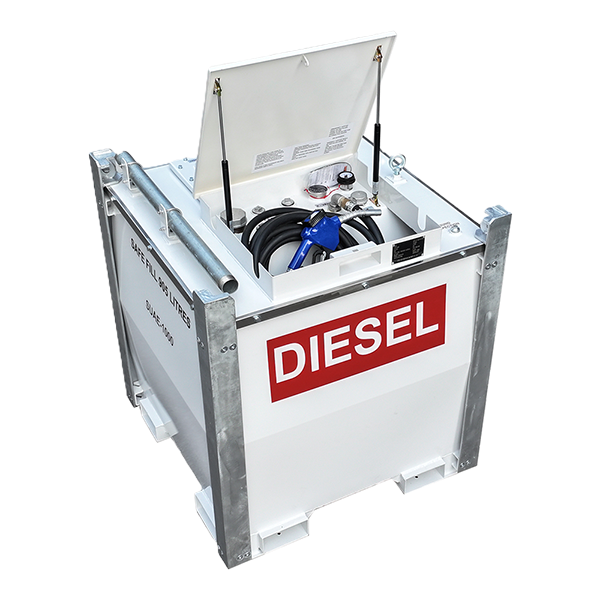

SUMACube Pro HD is an upgraded heavy-duty stationary fuel tank
designed for on-site fuel storage and daily refueling.
Built for harsh
environments such as construction and mining, it features reinforced
corner posts for added protection and an optional extended vent pipe
to keep tank breathing above operator level.
|
|
|
|
| Models | SUAE-1000 | SUAE-2000 | SUAE-4000 |
|
Capacity Safe fill（95%）/ Brim Fill |
238 / 251 US gal | 525 / 552 US gal | 965 / 1016 US gal |
| 902 / 950 L | 1,987 / 2,089 L | 3,653 / 3,845 L | |
|
Dimension L×W×H |
45.1" × 45.1" × 50.4" | 90.0" × 45.2" × 50.4" | 90.0" × 86.9" × 46.5" |
| 1,152 × 1,152 × 1,281 mm | 2,286 × 1,147 × 1,281 mm | 2,286 × 2,208 × 1,180 mm | |
|
Weight Empty / Safe Fill |
1,246 / 2,936 lb | 2,079 / 5,803 lb | 2,926 / 9,771 lb |
| 565 / 1,332 kg | 943 / 2,632 kg | 1,327 / 4,432 kg |
