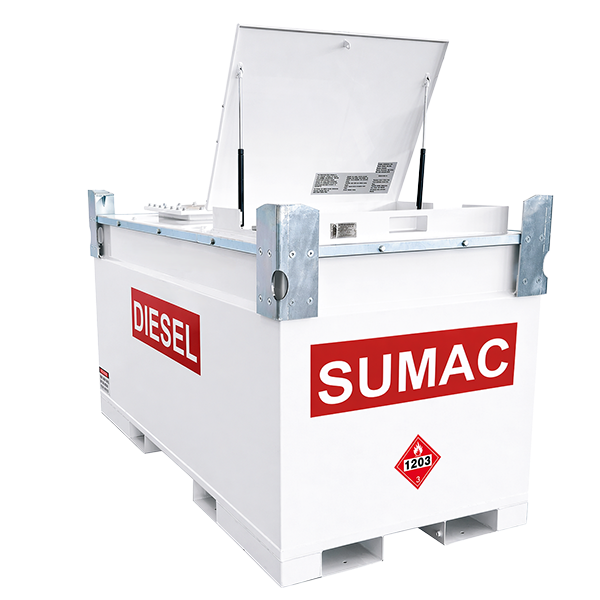

SUMACube Ultra

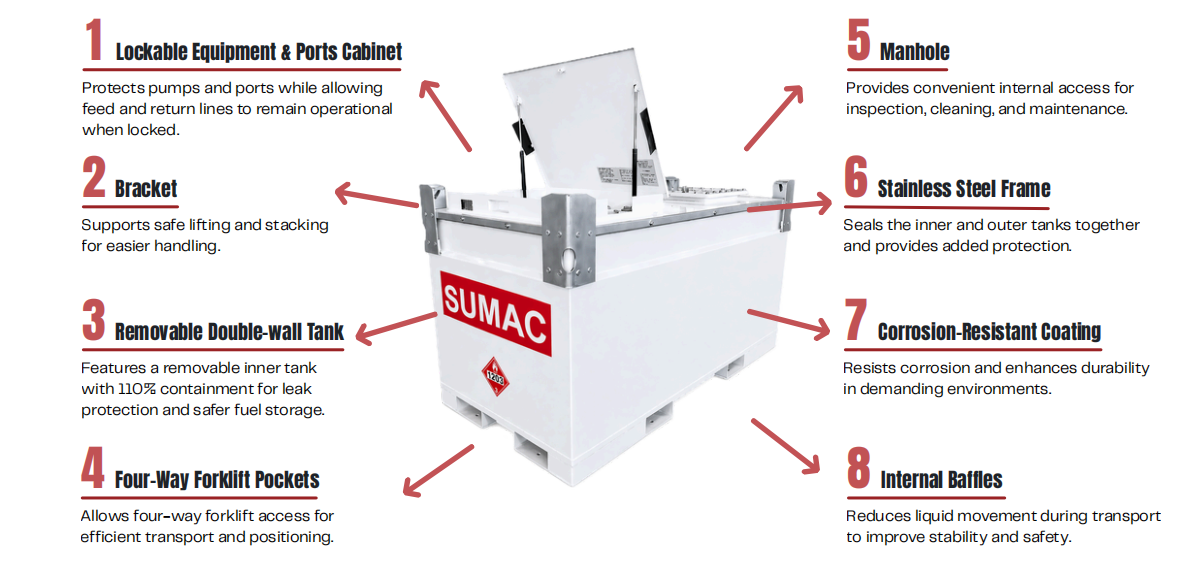

SUMACube Ultra is a detachable double-wall fuel tank designed and certified for transport while filled,as well as for on-site fuel storage and refueling.

It provides a reliable and flexible fuel solution for a wide range of field applications,featuring a durable corrosion-resistant coating for dependable performance in demanding environments.

Specifications
Model NW-1000ES NW-2000ES NW-4000ES
Capacity
Safe fill(95%)/ Brim Fill
238 / 251 US gal 525 / 552 US gal 965 / 1016 US gal
900 / 950 L 1,987 / 2,089 L 3,653 / 3,845 L
Dimension
L×W×H
45.1" × 45.1" × 50.6" 90.0" × 45.1" × 50.6" 90.0" × 86.6" × 46.7"
1,145 × 1,145 × 1,285 mm 2,285 × 1,145 × 1,285 mm 2,285 × 2,200 × 1,185 mm
Weight
Empty / Safe Fill
1,206 / 2,900 lb 2,009 / 5,437 lb 2,954 / 9,720 lb
547 / 1,315 kg 911 / 2,466 kg 1,340 / 4,409 kg
